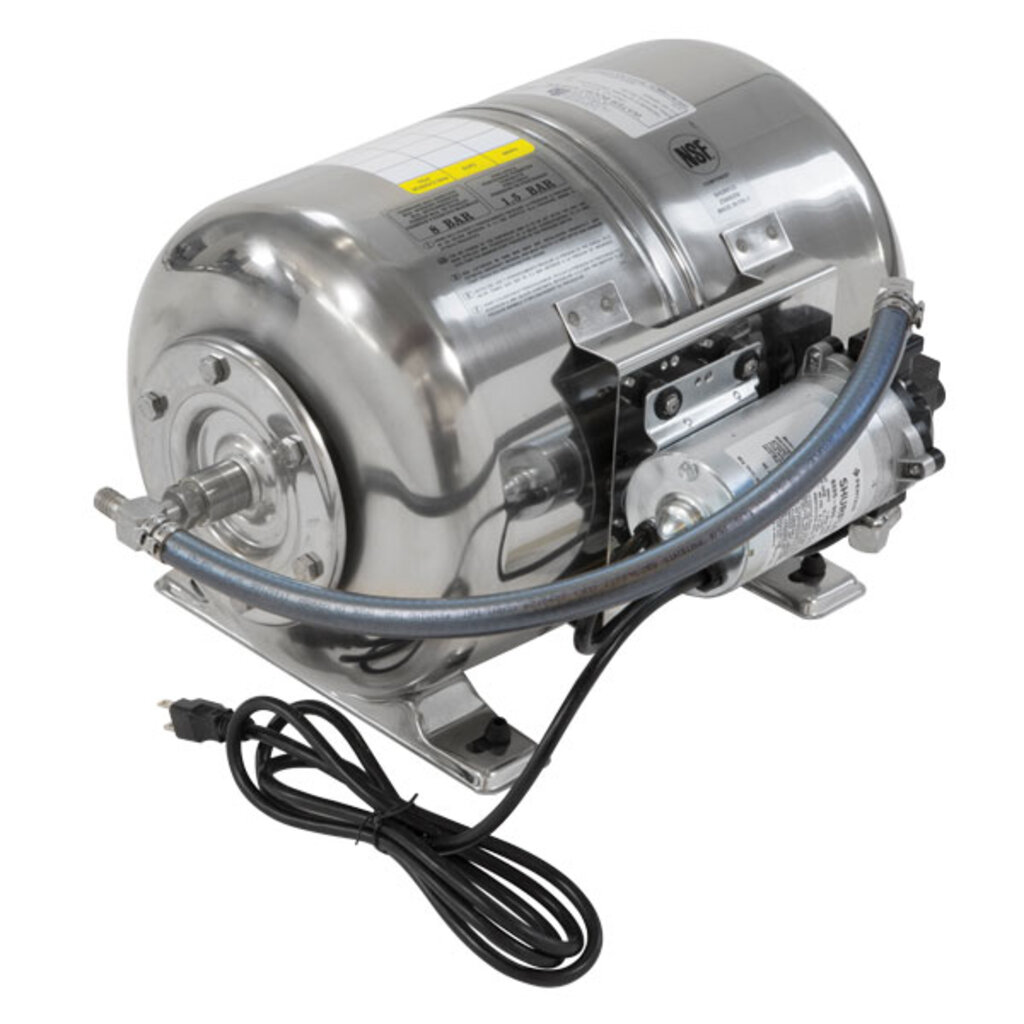

Maxi Water Booster

Description

A Maxi Water Booster is recommended with Micro Matic water chillers/dispensers.

The inconsistency of city water pressure and flow requires the need for a Water Boost System to deliver quality drinks in many installations. Use a Water Booster for applications where low, fluctuating, or no water pressure exists. The pump and accumulator tank maintain consistent water pressure to one or more dispensing valves or faucets.

Features:

  • Pump and tank are NSF, UL, and CSA listed
  • 90 psi, 115 VAC
  • 6 Gallon Stainless Steel Accumulator Tank
  • Inlet/Outlet: 1/2" stainless steel barb fittings
  • Can run dry without damage
  • Self priming up to 8 vertical feet
  • Increase flow and pressure to carbonated and non carbonated soda valves

Place the Water Booster after the main water connection, and before the water filter.

Specifications

ApplicationWater chillers and dispensers
Volts115 VAC
Connections1/2" barb
Recommended operating pressure50 psi
Draw Down3.1 gal @ 50 psi
Max working pressure117 psi
Capacity6 gal
BladderButyle rubber
Temperature range34-120 F
