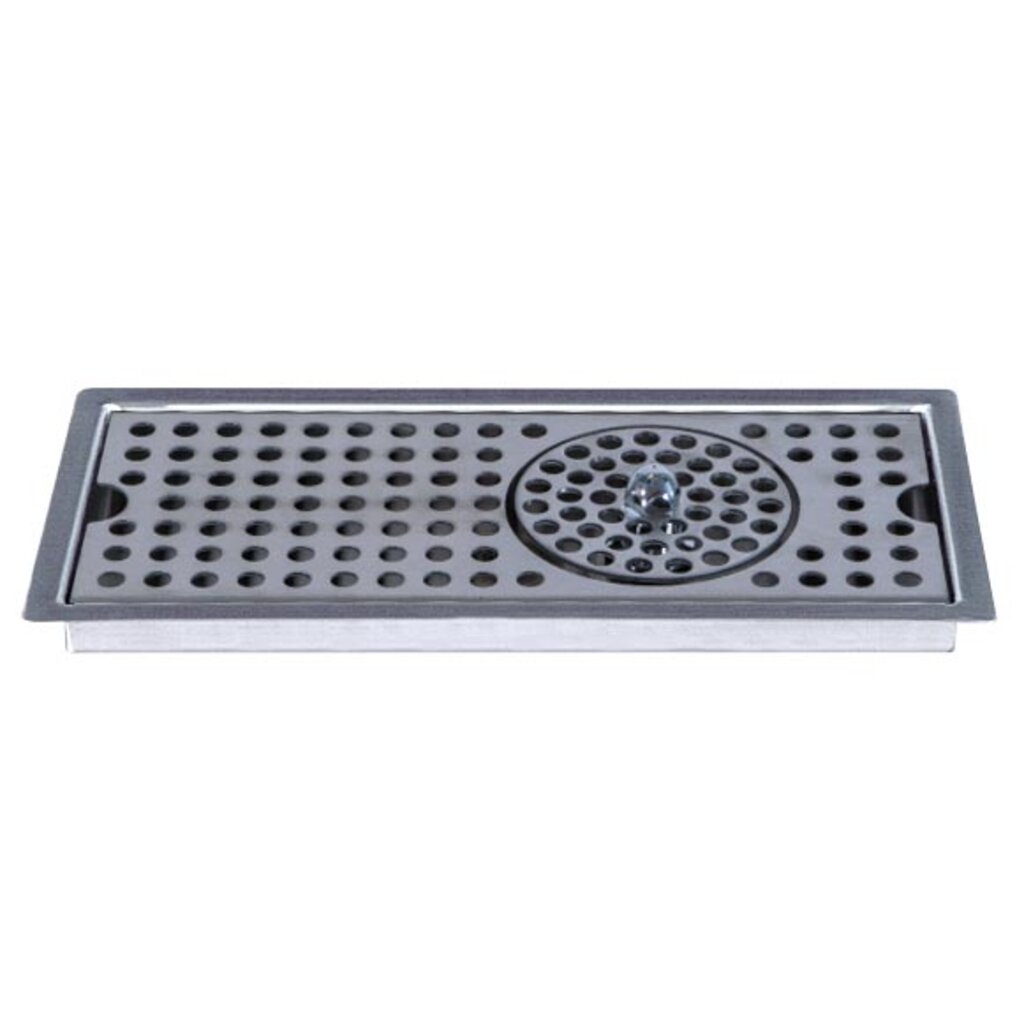

12" Flush Mount with Glass Rinser

12" Flush Mount with Glass Rinser

Description

Features

  • Premium flush mounted drip tray with glass rinser
  • Robust 18 gauge stainless steel construction
  • Fast draining, precision perforated screen
  • Center mounted drain, 1-3/4" x 1/2" N.P.T. drain pipe perfect for plumbing with PVC directly to a drain

Rinser Water Inlet Installation

  • Always check local plumbing codes first
  • Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
  • Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking)
  • Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly)
  • If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system
  • Install a shut-off for the water supply if line is not hard plumbed into the system
  • View Wall Mount Features

Note: If intended for use with a vinyl drain hose, order item DDN drain nipple separately.


Important information regarding Prop. 65 for CA residents.

Specifications

Series TypeFlush Mount
I.D. Dimensions12"L x 5"W
Flange1/2"
FinishBrushed Stainless Steel
DrainThreaded 1-1/4" x 1/2" NPT
Water connectionExternal-1/2' BSP (standard plumbing connection)
or3/8" NPT internal thread
