15-3/4" Stainless Steel Glass Rinser Drain Tray, 1-2 Faucets

Product Images

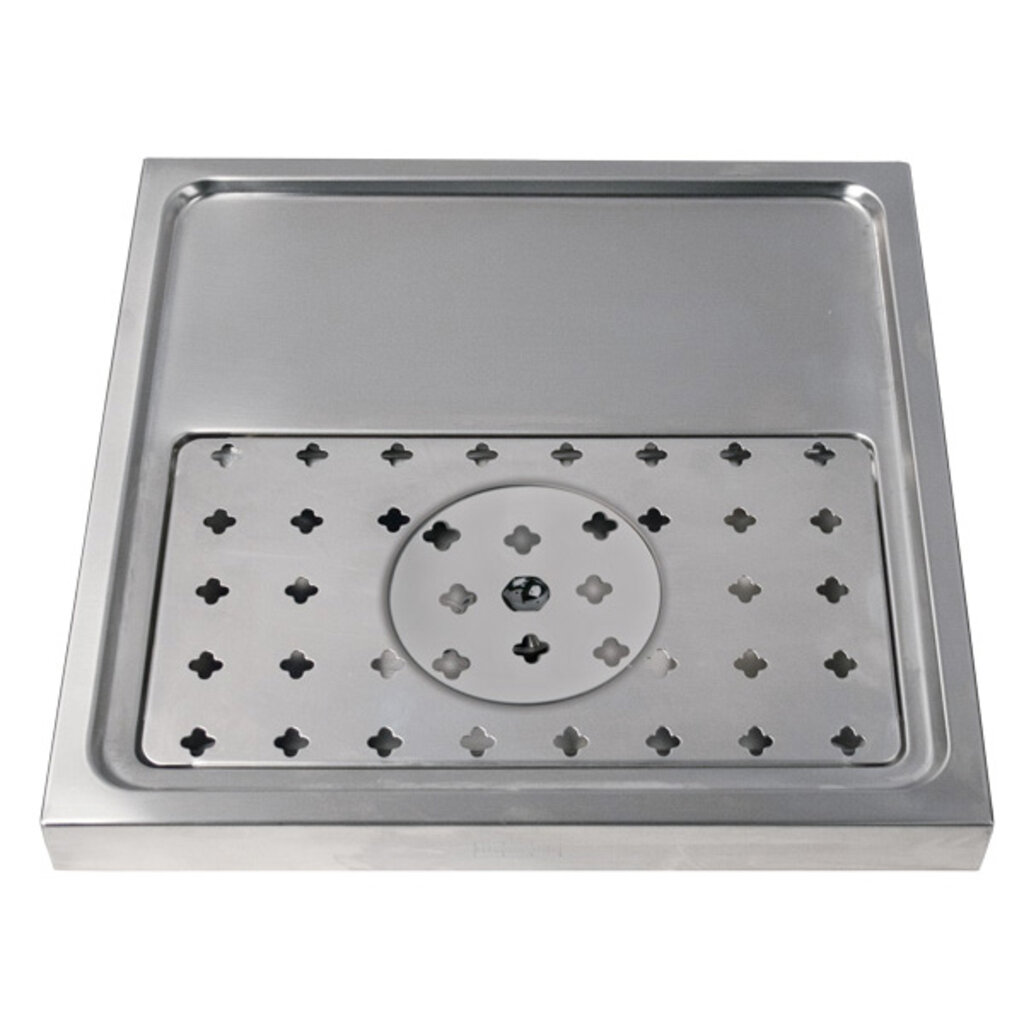

15-3/4" Glass Rinser Tray

Description

The new standard in integrated bar design combines the draft tower mounted to a platform tray. A seamless stainless steel platform tray offers improved hygiene and efficiency at the point of dispense. The tray is constructed of heavy gauge stainless steel with a durable metal rinser.

Condition the Glass Before Dispensing

  • Rinse away any impurities that might be in the glass.
  • Chill the glass utilizing cold water.
  • A wetted glass pours better.

Rinser Water Inlet Installation

  • Always check local plumbing codes first.
  • Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure).
  • Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking).
  • Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly).
  • If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system.
  • Install a shut-off for the water supply if line is not hard plumbed into the system.

Choose stainless steel for the ultimate in purity!

Specifications

Dimensions15-3/4"L x 15-3/4"W
Drip Area13"L x 7-1/4"W
Tower Mount Area13-3/4"L x 6"W
Faucets1-2
Series TypeSurface Mount
MaterialStainless Steel
Water Drain1/2" Barb
Water connectionExternal-1/2' BSP (standard plumbing connection)
Customer Reviews







Replacement Parts
ItemPart #DescriptionPriceAvail.Qty
1 GR-1581-2 Glass Rinser - Replacement $78.30 In Stock
