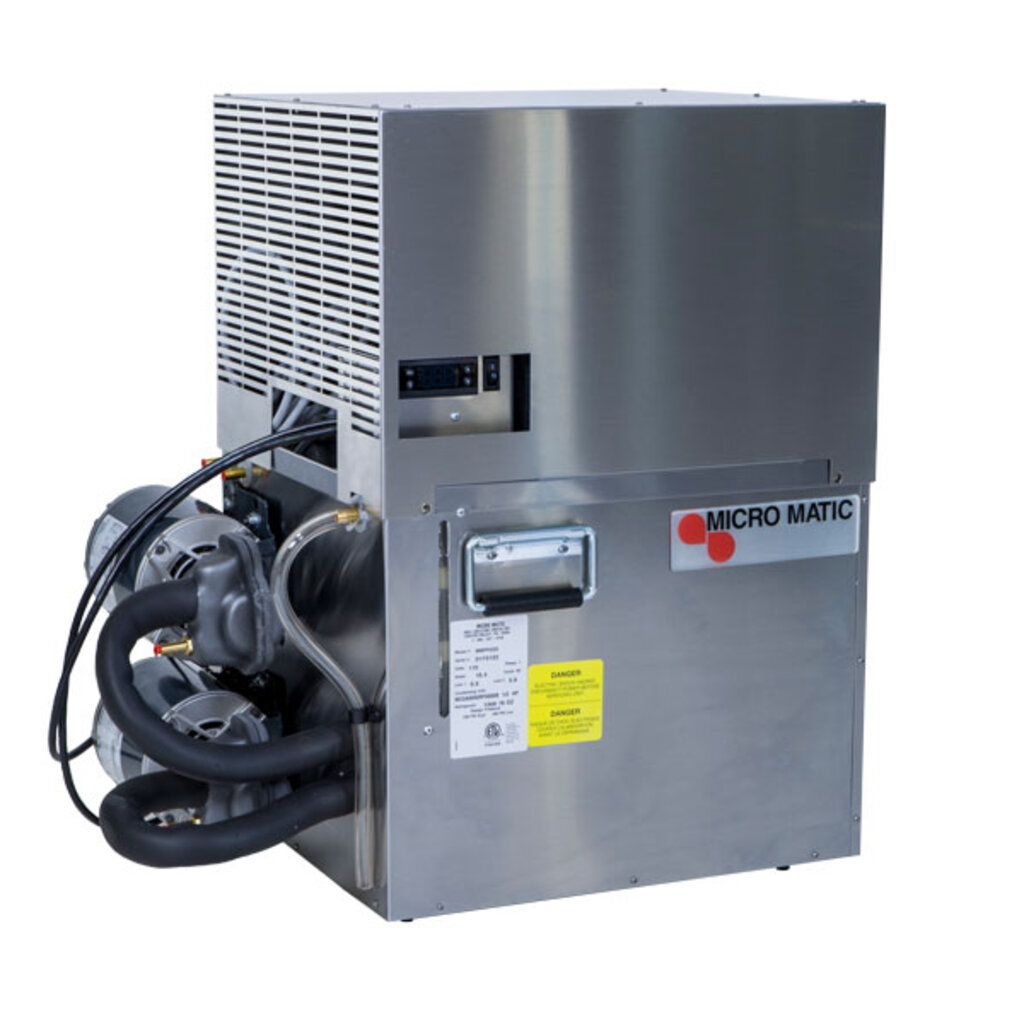

    Pro-Line™ Power Pack - 3,600 BTU - 1/2 HP - 2 Pumps - Air Cooled

    # MMPP4302-PKG
    The Micro Matic MMPP4302-PKG is an air-cooled Pro-Line™ glycol power pack designed for long-draw draft beer systems. It features 3,600 BTU cooling capacity, a 1/2 HP compressor, two glycol-recirculation pumps, and an 11.5-gallon insulated glycol bath.
    ... Read more

    Quantity

    This product is sold in packs of 1
    $4,158.00 Each

    Total Cost: $0.00

    In stock
    IL
    FL
    PA
    CE
    Description
    Specifications
    Replacement Parts
    Downloads

    The two model comparisons and category link are already positioned below. Preserve the existing manufacturer-specific notices in the appropriate section.


    The Micro Matic MMPP4302-PKG Pro-Line™ Power Pack supports long-draw draft beer systems by circulating chilled glycol alongside the beer lines to help maintain dispensing temperatures between the cooler and faucets.


    This self-contained, air-cooled unit features 3,600 BTU cooling capacity, a 1/2 HP compressor, an 11.5-gallon glycol bath, and two recirculation pumps. Its dual-pump configuration makes it distinct from the single-pump MMPP4302 model.


    Pro-Line™ Glycol Power Pack Features


    • 3,600 BTU cooling capacity — Provides refrigeration capacity for appropriately sized glycol-cooled draft systems.
    • 1/2 HP air-cooled compressor — Supports the unit's refrigeration system.
    • Two rotary-vane recirculation pumps — Circulate glycol through the system, with each pump listed at 80 GPH.
    • 11.5-gallon insulated glycol bath — Holds the glycol solution and includes insulation in the bath walls and floor.
    • Bath-level sight glass — Allows visual checks of glycol level without removing the lid.
    • Adjustable digital thermostat — Displays glycol temperature and allows temperature adjustments.
    • Lift-off deck lid — Provides access for servicing.


    Electrical and Technical Specifications


    The MMPP4302-PKG is listed as a 115V self-contained unit with a NEMA L5-30P plug. Its current product specifications identify a stainless-steel cabinet cover.

    Check the model-specific specification sheet and installation manual for electrical requirements, equipment dimensions, ventilation clearances, and permitted operating conditions before installation.


    Comparing Pro-Line™ Glycol Power Packs


    The MMPP4302 single-pump power pack offers the same listed 3,600 BTU cooling capacity and 1/2 HP air-cooled compressor but uses one recirculation pump. The two models also have different listed plug configurations.

    For a split-deck installation, compare the MMPP4302-PKG-R remote power pack, which provides a two-pump configuration with a remotely positioned air-cooled compressor.


    These configurations have different installation requirements. Confirm the pump arrangement, electrical requirements, cooling load, and available installation space before ordering.


    Glycol Preparation, Refrigerant and Warranty


    Follow the current Micro Matic installation manual for preparing and maintaining the glycol solution. The manufacturer lists a mixture of one gallon of glycol to 2.5 parts water for this product family; confirm the applicable instructions for the supplied unit before use.


    Micro Matic identifies R513a refrigerant for MMPP4302-series units manufactured after March 1, 2023. Confirm the actual unit's production date and nameplate before servicing its refrigeration system.


    The manufacturer also publishes warranty coverage for power packs, including parts, labor, and compressor provisions. Refer to the current Micro Matic power pack guidance and applicable warranty documentation for details.


    Choosing the Right Glycol Power Pack


    A power pack should be selected based on the total system cooling load, trunkline configuration, circulation requirements, and installation conditions rather than horsepower or run distance alone.


    Use the Micro Matic BTU Calculator to help determine the required cooling capacity, or browse the Power Packs category for other available configurations.
