Premium Plus 4 Way Secondary CO2 Regulator - Low Pressure - 0-60 PSI - 4 Gauge - 4 Products
Quantity
Total Cost: $0.00

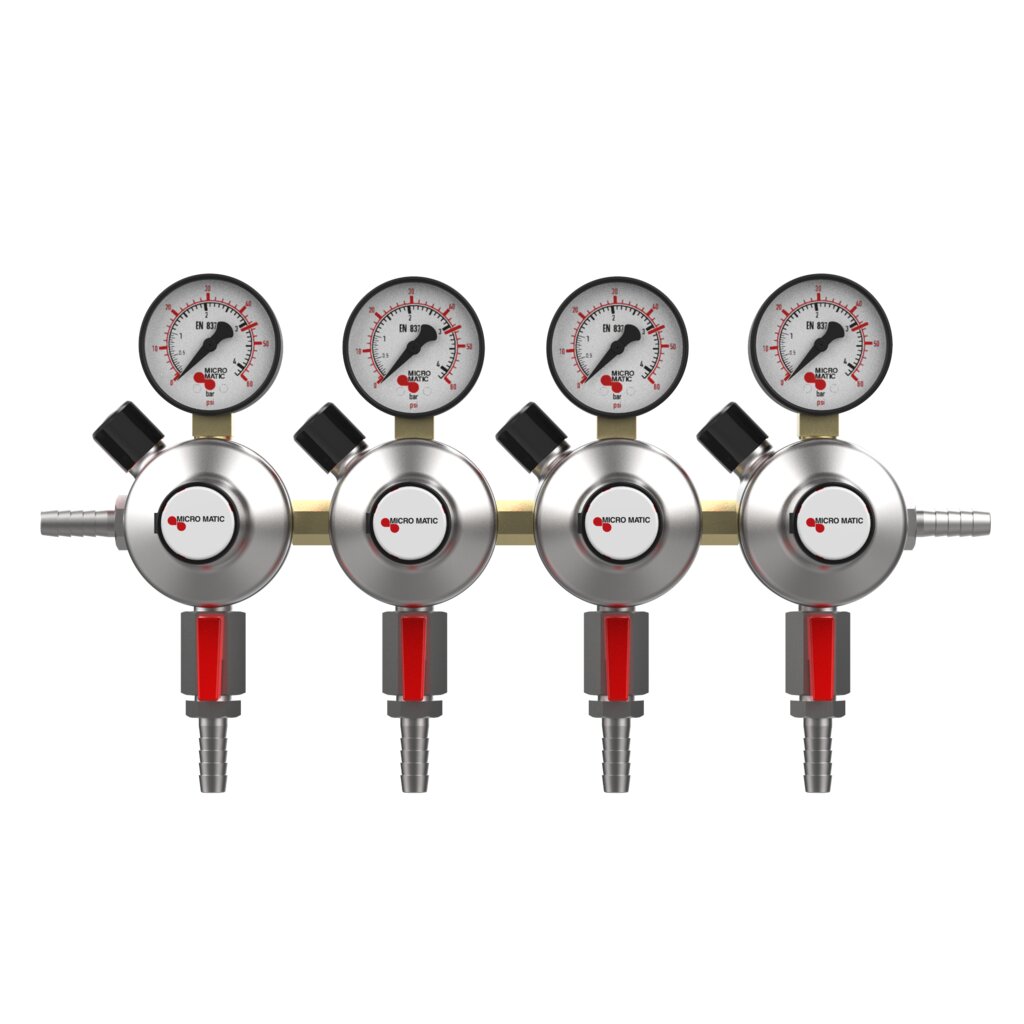

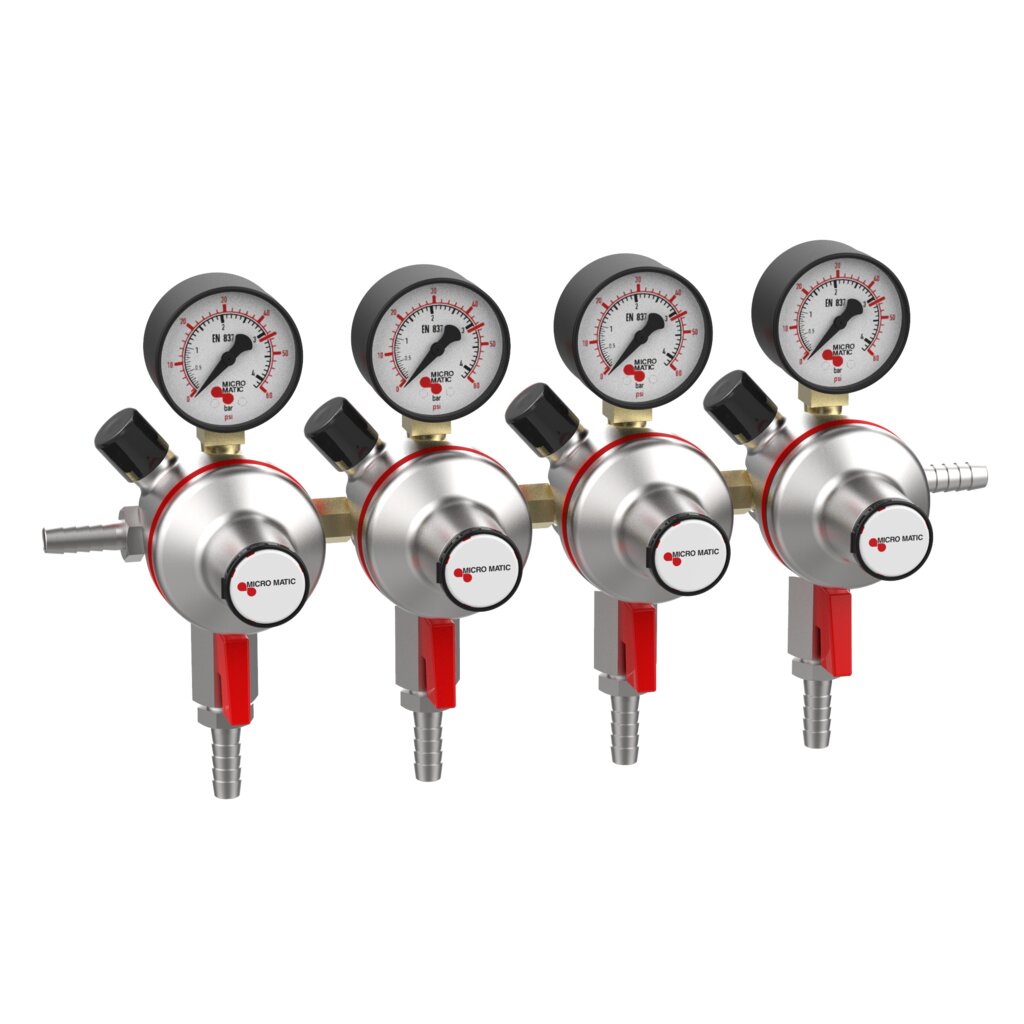

The Micro Matic 8044-PP is a Premium Plus secondary CO2 beer regulator designed to control gas pressure for four individual kegs in a draft beer system. It receives gas from a primary regulator or gas blender and supplies reduced pressure to each keg. Its four-gauge configuration allows users to monitor the output pressure across the 0–60 PSI adjustment range.
For added safety, the regulator features an integrated pressure-relief valve that releases at 55–65 PSI. Premium Plus regulators also include a tamper-evident adjustment screw and bonnet to help prevent unauthorized pressure adjustments that may cause service issues.
PREMIUM PLUS SECONDARY REGULATOR FEATURES
• 4 Pressure / 4 Product configuration
• Four output pressure gauges
• Adjustable pressure range from 0 to 60 PSI
• Forged brass body with chrome-plated finish
• Premium metal gauges
• Tamper-evident adjustment screw and bonnet
• Nickel-plated valve seats for corrosion resistance
• Enlarged CO2 port for higher gas volume
• Integrated safety pressure-relief valve releases at 55–65 PSI
• Factory leak-tested at 145 PSI
• Made in the USA
INSTALLATION AND CONNECTIONS
The 8044-PP is designed for wall mounting and includes a mounting bracket. The listed connections include 3/8" O.D. inlet connections on both sides and 3/8" O.D. outlet barbs with shut-off.
The specifications also list an included threaded plug. Check the required gas connections, mounting space, and system configuration before ordering.
MODEL COMPARISON
The Premium Plus secondary regulator family offers configurations for different numbers of independently controlled products:
• 8022-PP – 2 Pressure / 2 Product configuration
• 8033-PP – 3 Pressure / 3 Product configuration
Choose the configuration based on the number of products and pressure controls required by your draft system. Compare dimensions and connections before ordering. These configurations are not automatically interchangeable.
Follow the current manufacturer instruction manual for installation, pressure adjustment, and maintenance.
