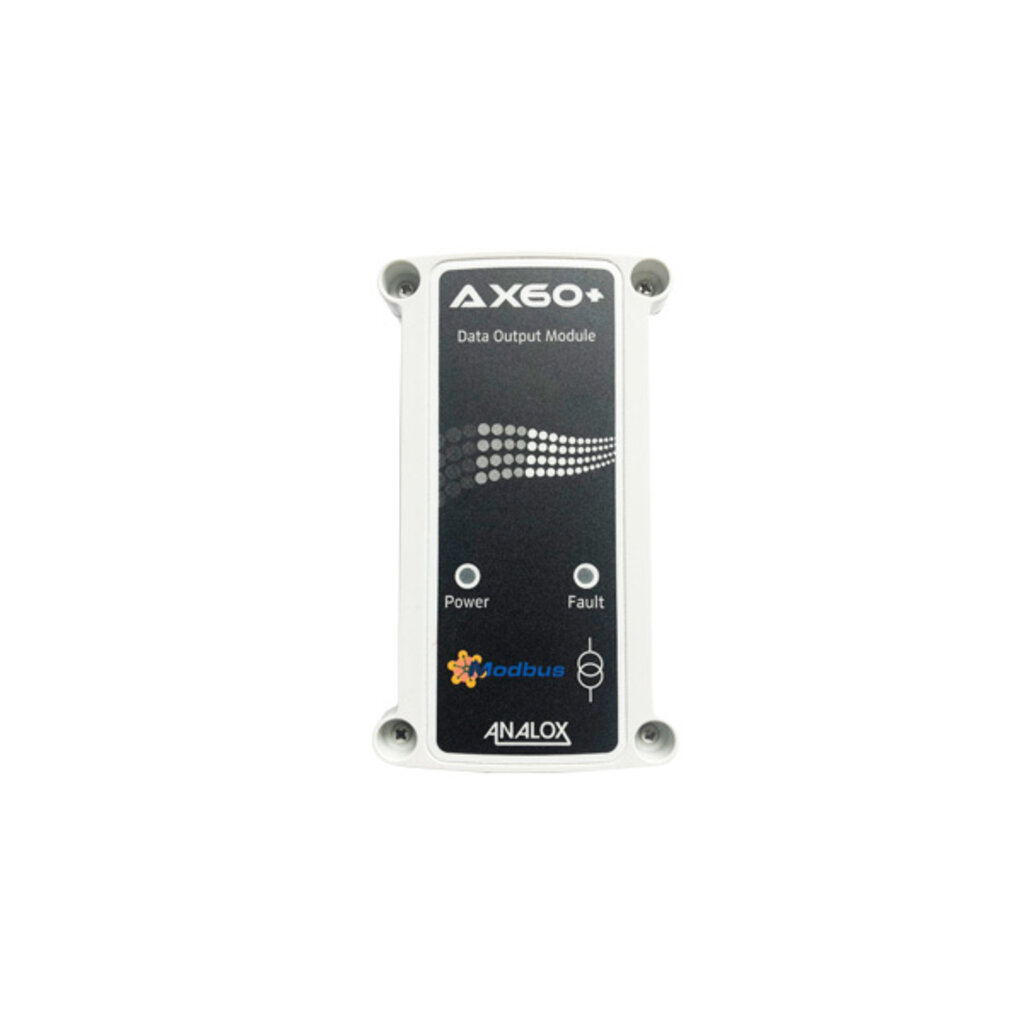

Data Output Module - Analox Ax60+ CO2 Safety Monitor System

The Data Output Module is an accessory for the Analox Ax60+ CO2 Safety Monitor System fixed gas monitor. The module provides real-time monitoring of the Ax60+ and communicates with customers' remote systems such as a Building Management System (BMS).

The module can be used in several ways;

1. 4-20mA signal over 4 channels (one per sensor)

2. MODBUS RTU Communications

3. Can be retrofitted to any existing Ax60+ installations

The Data Output Module is easy to mount and install. Attach to a wall or suitable flat surface and connect into the Ax60+ using the supplied cable. It is available as a quick connect or hard wired unit.

FEATURES

4-20mA

• Simple to install, an industry-standard communication method for communicating sensor status to remote locations.
• 4 channels (1 per sensor).
• Transmits gas levels (e.g. 20.9% O2).
• Fault diagnostics (e.g. Sensor is in fault, analog output drives down to 3mA).

MODBUS

• MODBUS enables more detailed communications regarding sensor status and allows monitoring of the Ax60+ system for more in-depth analysis.
• Enables the transmission of multiple data messages from each sensor.
• Transmits gas levels (e.g. 5000 ppm CO2).
• Transmits alarm status (e.g. AL2 Triggered).
• Ability to transmit fault status (e.g Sensor 2 is in fault).
