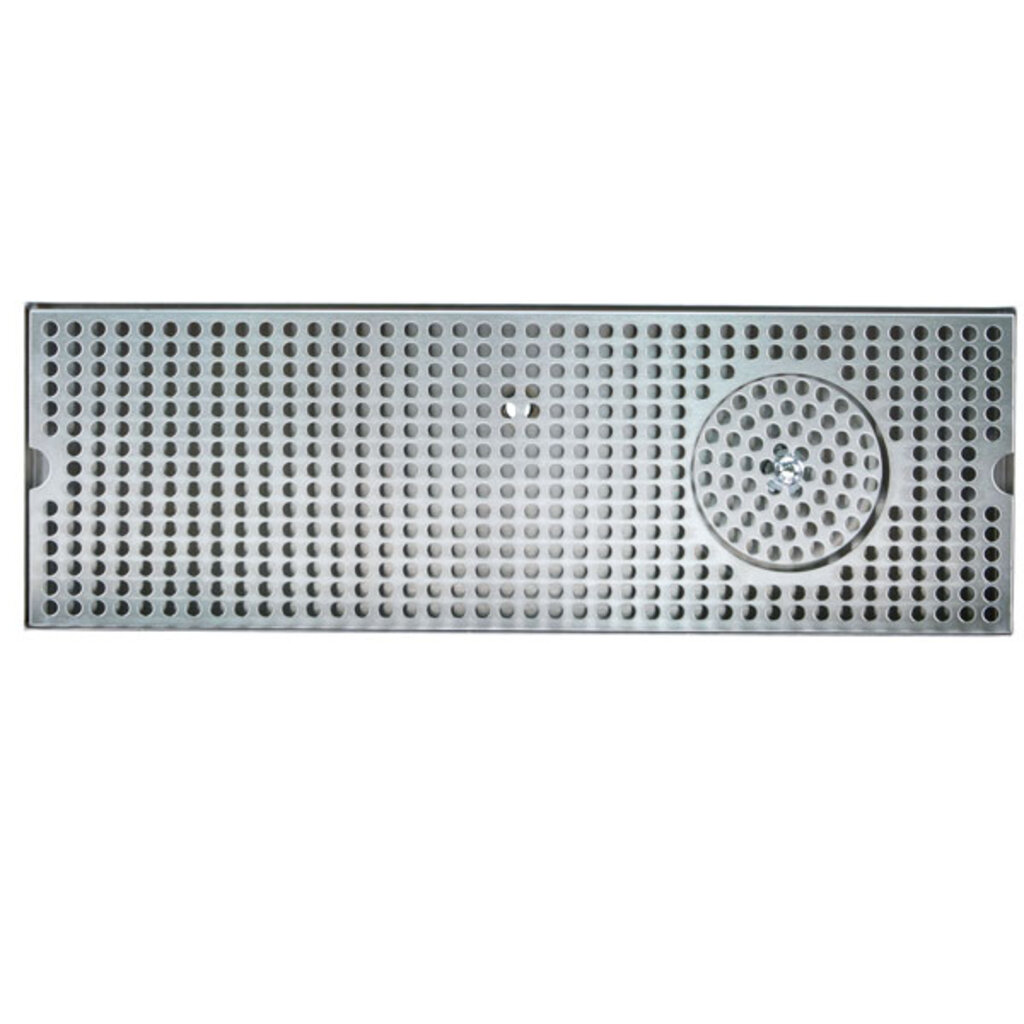

20" Surface Mount Rinser Tray

• Easy installation: simply drill holes for Rinser and Drain
• Robust 18 gauge stainless steel construction
• Welded corners, finished smooth for safety and appearance
• Fast draining, precision louvered screen
• Center mounted solid brass drain

Rinser Water Inlet Installation:

• Always check local plumbing codes first
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
• Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking)
• Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly)
• If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system
• Install a shut-off for the water supply if line is not hard plumbed into the system
