Pro-Line Glycol Power Pack,11,500 BTUs, 1.5 HP Compressor Water Cooled

Product Images

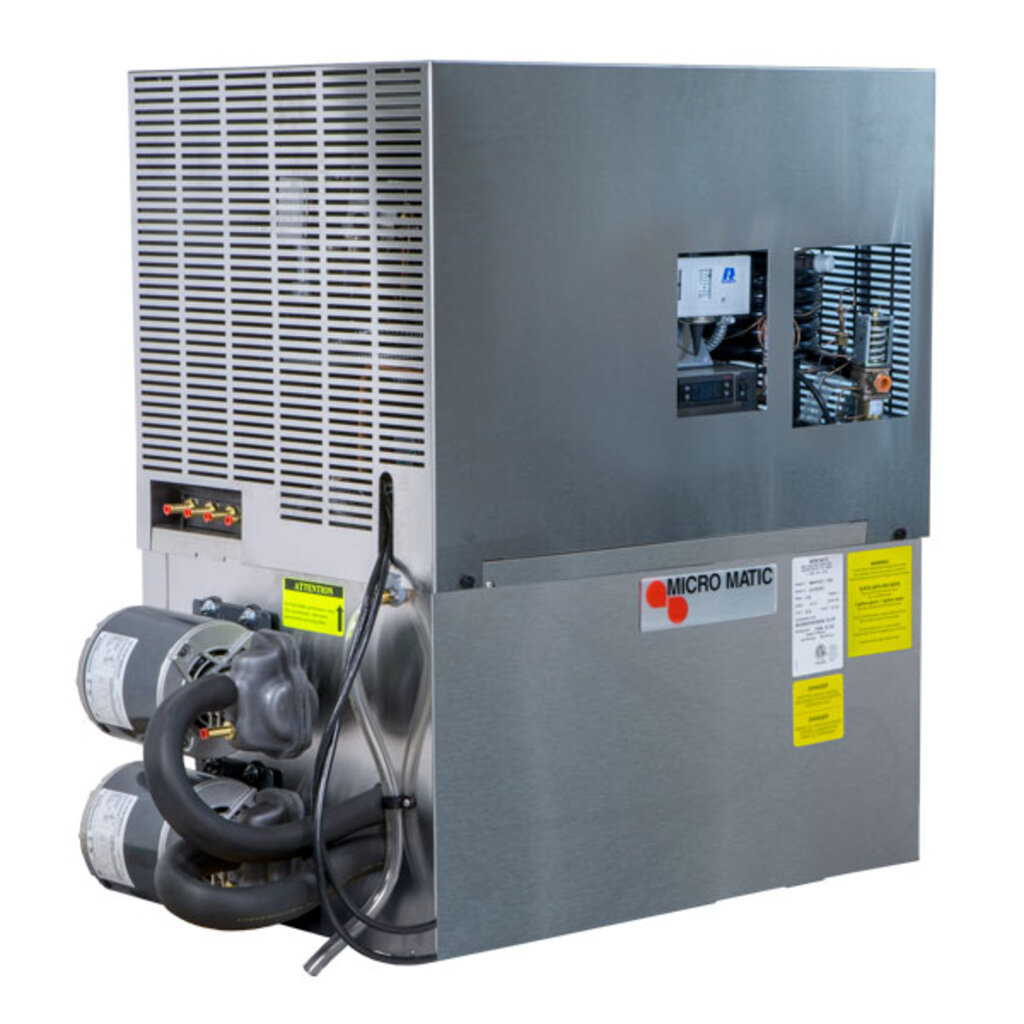

Pro-Line Glycol Power Pack

Description

The compressor is water-cooled for high temperature/humidity installations.

Warranty

All power packs carry a full 18 month warranty against defects in material and workmanship and one year on labor from date of sale. Defective parts, subject to our inspection, will be replaced or repaired during the warranty period on a no charge basis. The compressor is warrantied for an additional three and one-half (3-1/2) years. All loss of sales must be borne by the purchaser.

Notes: Glycol Bath Ratio: 5 gallons of glycol to 7 gallons of distilled water ( 40% glycol to 60% distilled water ). It is recommended that distilled water be used because it does not contain impurities that will contaminate the glycol bath and the operation of the "thin-plate" technology.

ETL Canada & US

Specifications

ApprovalETL Listed
Second Pump & MotorIncluded
Compressor1.5 HP
Compressor CoolingWater Cooled
Refrigerant metering deviceSporlan SRSE-1-C TXV
Suction pressure56 PSI with bath filled at 32 degrees
RefrigerantR-404A
Charge37 oz.
BTUs11,500/H
Volts208/230
Plug TypeNEMA 6-20P
Amps (Running)9.9A
Bath Capacity11.5 Gallons
Pump TypeVane (Procon) with 1/3 HP Motor
Refrigerant Running Pressure55 (Low) - 260 (High)
Pump Capacity80 GPH @ 120PSI
Dimensions31-1/2"H x 18-3/4"W x 37-1/8"D
Weight295 lbs
Cabinet CoverIncluded
Customer Reviews







Replacement Parts
ItemPart #DescriptionPriceAvail.Qty
PP4301-PPA Procon Pump Assembly PP4301-PPA $243.00 In Stock
MM-IPCPRO Procon Pump Insulation MM-IPCPRO $41.85 In Stock
MM-3362-2 Procon Pump Key MM-3362-2 $13.43 In Stock
MM-BC3-KIT Procon Connection Kit MM-BC3-KIT $26.33 In Stock
MMPP4305-M Motor for MMPP4305 2007 / Present $284.85 In Stock
MMPP080G3206 Digital Thermostat 2007 / Current $130.28 In Stock
