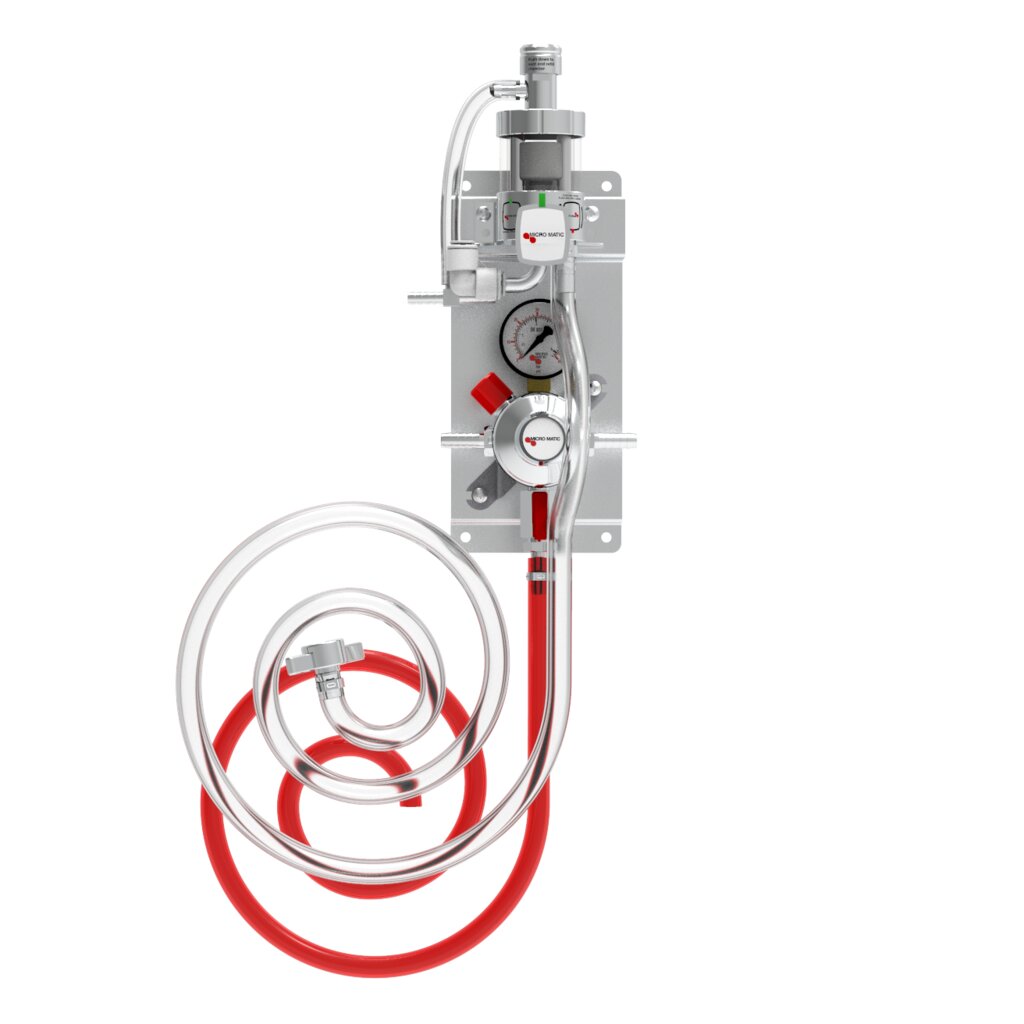

Regulator PRO-MAX™ Panel Kit - 1 Gauge - 0-60 PSI - 1 Pressure - 1 Product - 1 FOB

Regulator PRO-MAX™ Panel Kit - 1 Gauge - 0-60 PSI - 1 Pressure - 1 Product - 1 FOB


Installation ready! Save time and easily install a secondary regulator and a FOB for your draft beer system with this pre-assembled regulator panel kit. A metal panel makes installation on a walk-in cooler wall easy and features an integrated stainless steel wall bracket that acts as a reliable transition between a keg jumper hose and trunkline connector.

Safely and effectively control the flow of gas to one keg in your draft beer system. Secondary gas regulators reduce pressure from a primary regulator or gas blender, and provide this lower pressure to each individual keg. This secondary regulator has an adjustment range from 0-60 PSI range so you can quickly monitor the amount of gas flowing from the gas source to the keg. The pressure is easily adjusted by turning the set screw with a flathead screwdriver. For added safety, this model has an integrated pressure relief valve that vents the gas flow if outbound pressure exceeds 55 PSI.


  • 1 pressure/1 product
  • Single gauge secondary regulator, FOB, beer and gas hoses for kegs, all on one easy to mount panel
  • Wall mount panel with pre-drilled holes
  • Includes (1) stainless steel Profit Maximizer™ with pre-plumbed vent drain line
  • 8' of 3/8" I.D. clear vinyl with 304 stainless steel tailpiece
  • 8' of 5/16" I.D. red vinyl gas hose
  • Stainless steel wall bracket
  • Secondary regulator regulates gas coming from the primary gas source, going to a single keg
  • Pre-taped pipe plug and two hose barbs included
  • Forged brass and die cast for durability, accurate machining
  • Stainless steel valve seat for high corrosion resistance
  • Stainless steel inlet filter
  • Constant pressure supply at high output flow rates
  • Pressure relief valve ensures safety by releasing at 55-65 PSI

ABOUT PRO-MAX™ FOBs: PRO-MAX FOBs reduce pour costs and maximize profits loss when changing kegs. Foam is beer; stop wasting it when a keg empties. PRO-MAX™ FOBs sense an empty keg and stop the flow of beer. This allows the beer line to remain full when the keg empties. There is no need to re-fill the beer line: this reduces waste and maximizes glasses per keg. It is manufactured stainless steel with a large beer chamber for easy viewing and stainless steel hose connections.

New Product!


TypePanel Kit - CO2 or Mixed Gas
Performance1 Pressure / 1 Product
Output Pressure Gauge0-60 PSI, for accurate product pressure
Outlet Barbs3/8" O.D. with shut-off
InstallationWall mount panel, pre-drilled holes
Pressure Relief ValveSafety Pressure Relief Valve Releases at 55-65 PSI
Inlet3/8" O.D. ( Both Sides )
Gas Hose8' of 5/16" I.D. Red Vinyl
Jumper Hose8' of 3/8" I.D. Clear Vinyl / 304 SS tail piece
Connection (Product)'3/8' John Guest fitting
Panel Dimensions4-1/2" wide x 10" tall
