Under Bar Dispensing Cabinet - Glycol Cooled - 10 304 Faucets

Product Images

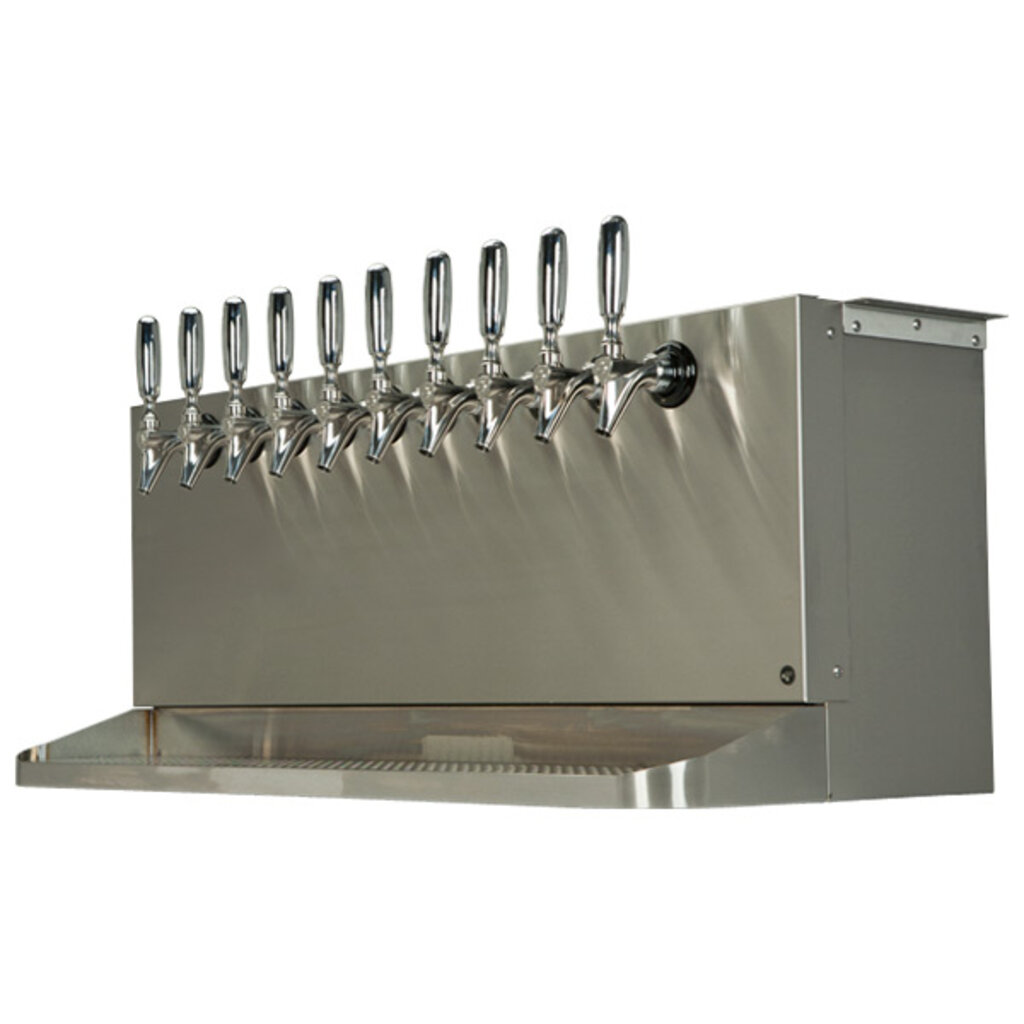

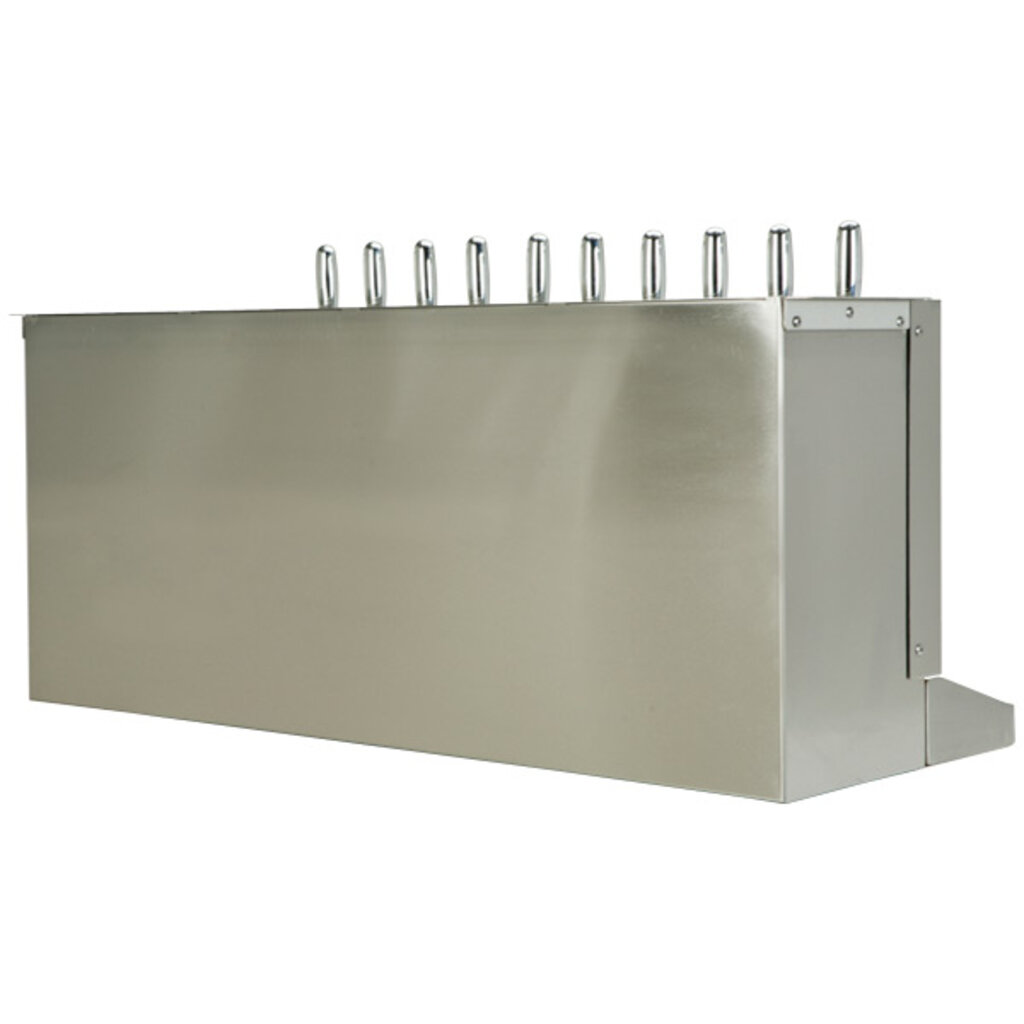

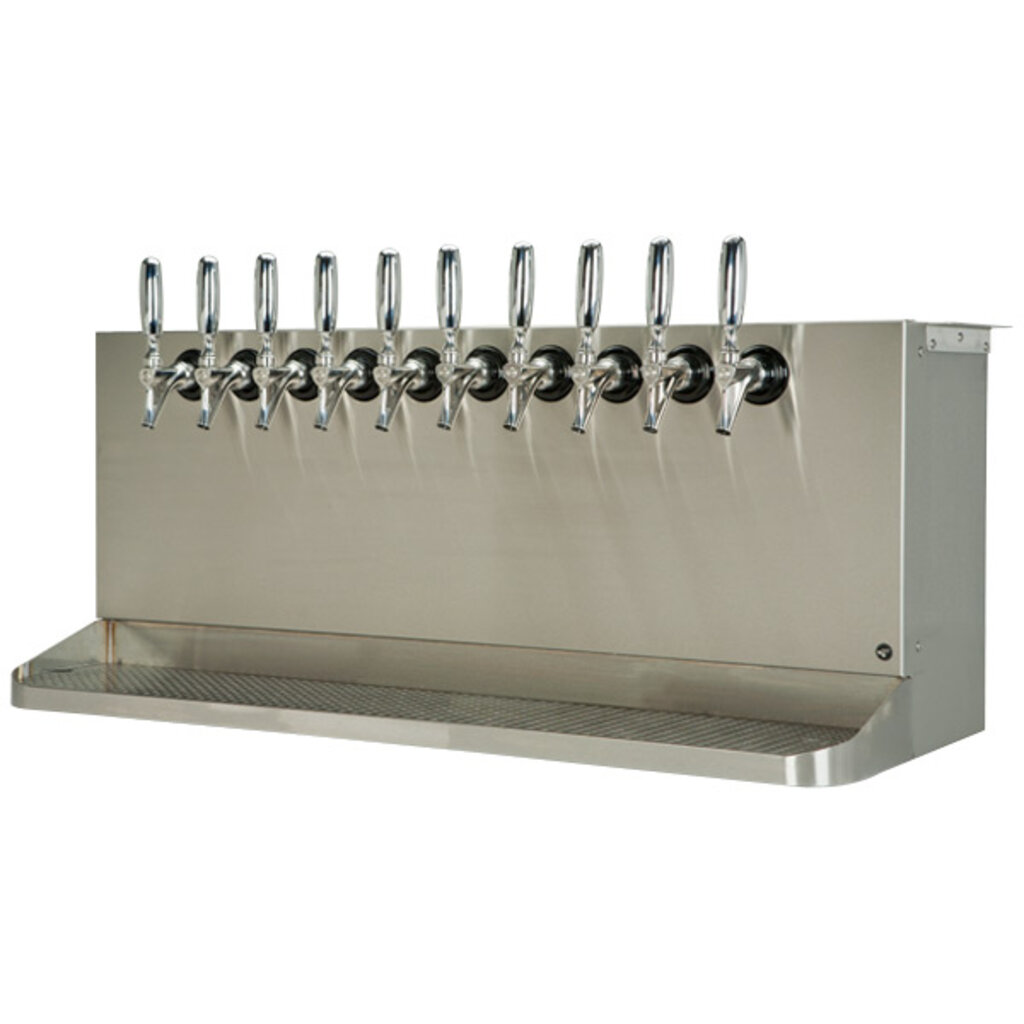

Under Bar Dispensing Cabinet

Description

Features

  • Integrated Kool—Rite module for optimum cooling
  • Integrated drip tray with drain and radius corners
  • Removable front panel for easy access
  • Two 4" holes in the bottom for glycol cooled trunk line setup
Kool-Rite Technology included.NSF Certified

Specifications

Model TypeUndercounter Dispense Cabinet
Dispense SystemGlycol Cooled (Kool-Rite integrated module)
Faucets10 304(Knobs not included, order seperately)
Faucet Spacing3" center to center
Connection (Product)1/4" O.D. Stainless Steel tubes with tapered barb 1/4"-3/8"
Connection (Glycol)3/8" O.D. Copper tubes with 3/8" barb fitting
Cabinet Dimensions38" W x 16" D x 16" H (plus 1" mounting flange each side)
Integrated Drip Tray38" W x 7-1/2" D
DrainThreaded 1-1/4" Lg. x 1/2" N.P.T.
AccessThree 4" holes in the bottom
Mounting FlangesEach side at the top of cabinet. Removable
