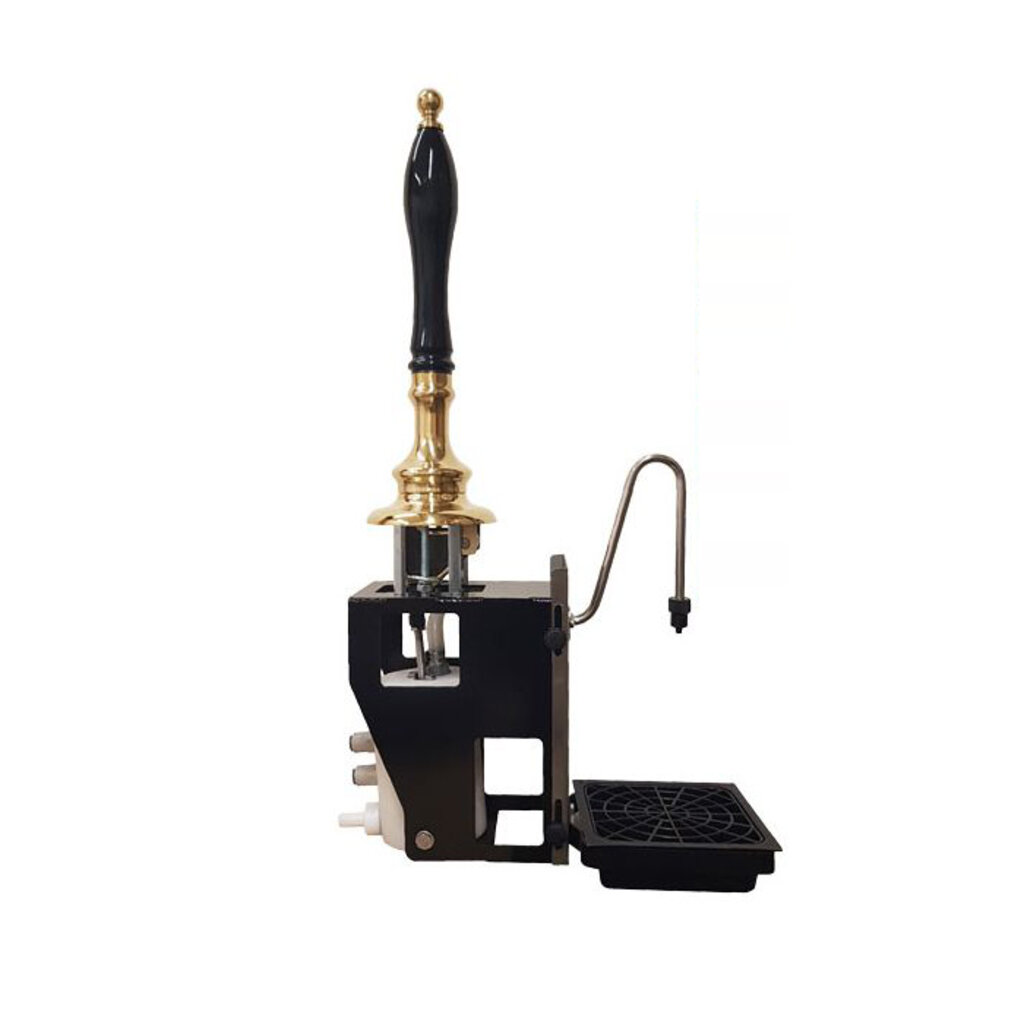

Angram Clamp-On Beer Engine with water cooling

Product Images

Beer Engine - clamp-on

Description

Cask beers are dispensed without using CO2 gas and instead by manually pulling it from the cask with a beer engine (hand pump). Pull the perfect pint with an Angram beer engine, the Rolls Royce of beer engines.

The Angram Model CQ combines supremely elegant styling with faultless operation and long—term reliability have made Angram famous for hand pump beer dispensers highest quality.
View Beer Engine Features

The Model CQ provides precise action which make all Angram handpumps a delight to use.

Quite often cask—conditioned ales are not refrigerated or require cooling from the refrigerator to the beer engine. The water jacket recirculates water from a cool water source to cool the beer line and cool the dispense head. The cool water source could be a container in the refrigerator to store water.

The water—jacketed cylinder assembly keeps beer within the cylinder cool. Connection to the cooling circuit is via 3/8" push—fit connectors.

Feature

  • Fast installation
  • Ultra light, precise pour action
  • Modular design for easy service
  • Proven reliability durability

Important information regarding Prop. 65 for CA residents.

Specifications

TypeHand Pump Dispensing for Cask Conditioned Ales
MountClamp-On
UseTemporary or Semi-Permanent
CoolingWater Jacket
SparklerIncluded
Plinth (base)Wood
Maximum Bar Counter Thickness2"
FinishBrass
Cylinder Capacity1/4 Pint
Height Above Bar Top16-1/4" (413mm)
Height Below Bar Top - Frame11" (257mm)
Overall Width7-1/4" (185mm)
Minimum Spacing Between UnitsTBD
