Pro-Line Glycol Power Pack,3,600 BTUs, 1/2 HP Compressor

Product Images

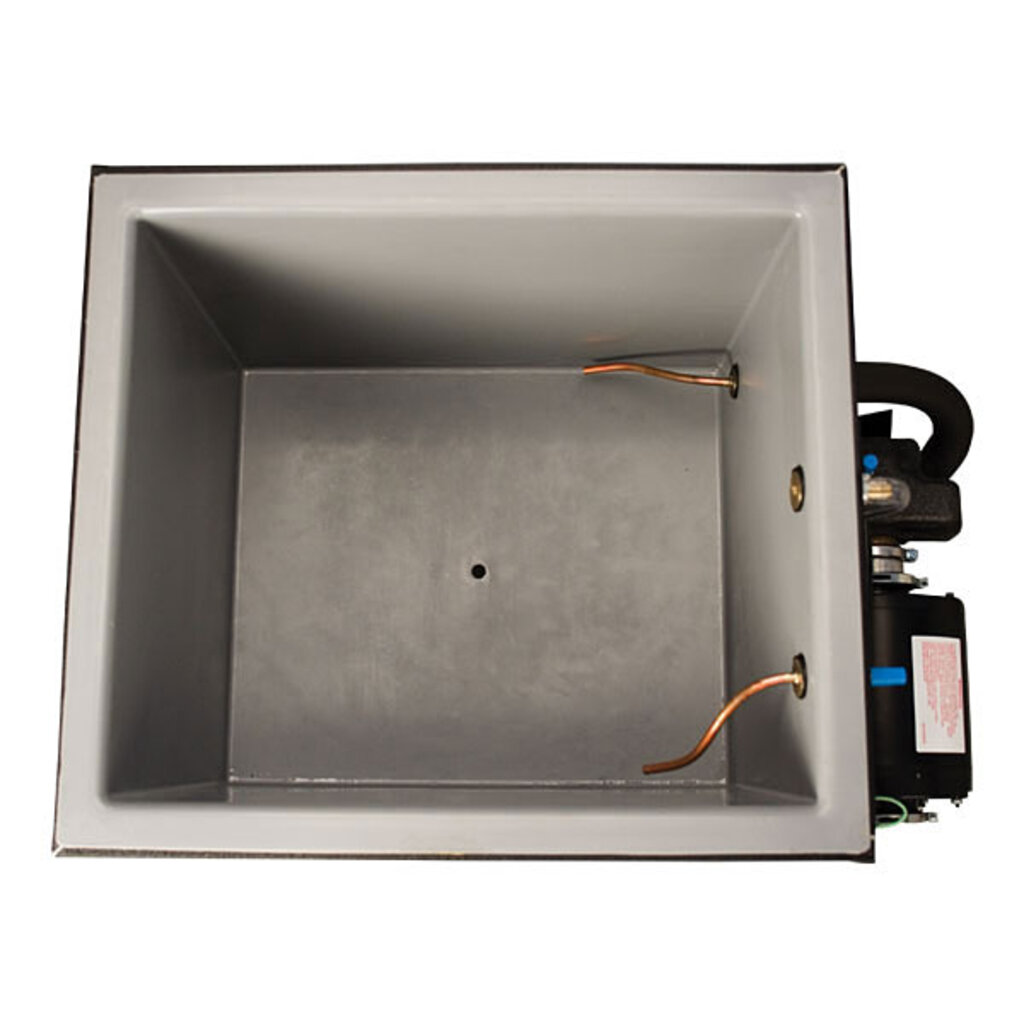

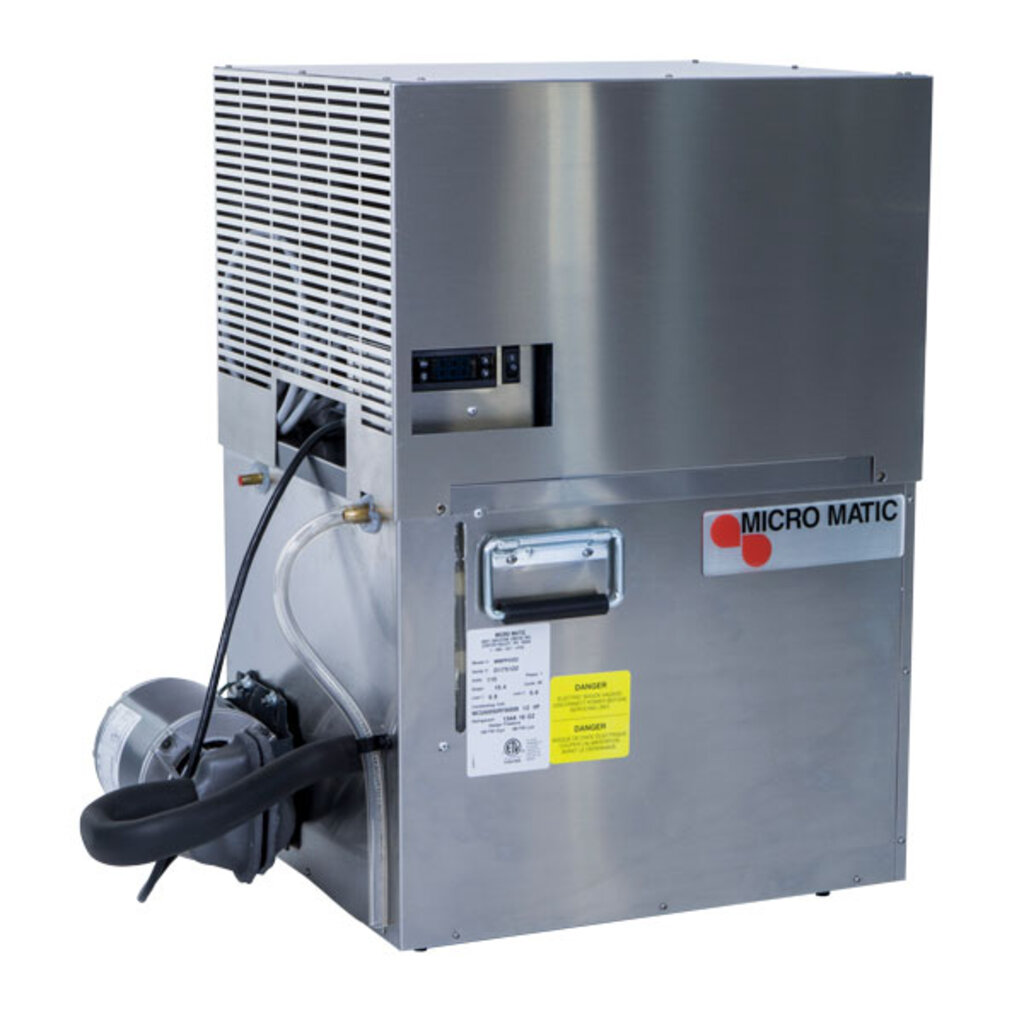

Pro-Line Glycol Power Pack

Description

Warranty

All power packs carry a full 18 month warranty against defects in material and workmanship and one year on labor from date of sale. Defective parts, subject to our inspection, will be replaced or repaired during the warranty period on a no charge basis. The compressor is warrantied for an additional three and one-half (3-1/2) years. All loss of sales must be borne by the purchaser..

ETL Canada & US

Specifications

ApprovalETL Listed
Second Pump & MotorOptional
Compressor1/2 HP
Compressor CoolingAir Cooled
Capillary tube size.059 x 112"
Suction pressure18 PSI with bath filled at 32 degrees
RefrigerantR-134a
Refrigerant Charge16 oz.
Refrigerant Running Pressure18 (Low) - 140 (High)
BTUs3,600/H
Volts115
Plug TypeNEMA 5-20P
Amps (Startup)
Amps (Running)15.4
Bath Capacity11.5 Gallons
Pump TypeVane (Procon) with 1/3 HP Motor
Pump Capacity80 GPH
Dimensions29-3/4"H x 18"W x 30"D
Weight157 lbs
Cabinet CoverIncluded
Customer Reviews







Replacement Parts
ItemPart #DescriptionPriceAvail.Qty
MMPP4301-M Motor - MM Power Packs $180.90 In Stock
PP4301-PA Gear Pump Assembly 2004 / 2014 $346.95 In Stock
PP4301-KEY Gear Pump Key 2004 / 2014 $13.50 In Stock
PP4301-PPA Procon Pump Assembly PP4301-PPA $243.00 In Stock
MMPP4301-PM Motor w/ Gear Pump Assy 2004 / 2014 $549.45 In Stock
MM-IPCPRO Procon Pump Insulation MM-IPCPRO $41.85 In Stock
MM-3362-2 Procon Pump Key MM-3362-2 $13.43 In Stock
PP4301-PPM Motor and Procon pump assy $438.75 In Stock
MM-BC3-KIT Procon Connection Kit MM-BC3-KIT $26.33 In Stock
MMPP080G3206 Digital Thermostat 2007 / Current $130.28 In Stock
